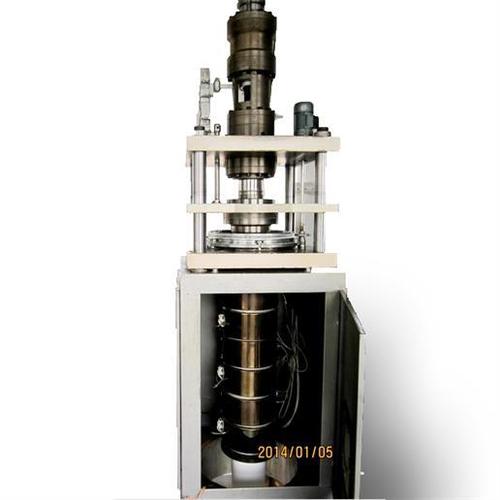

PTFE Teflon Plastic Extruded Tube Extrusion Machine PFG150


PTFE Teflon Plastic Extruded Tube Extrusion Machine PFG150 picture PTFE Teflon Push plunger press machine For PTFE Tube(Φ20-150mm)
PTFE ram extruder line is able to extrude ptfe/Teflon tube which dia from 20mm to 150mm.
The automatic production line is computerize controll, which is really easy to operate.Meanwhile,
the plastic Teflon extrusion machine is advance designed, high output, low energy consumption,
long-life, and also our professional engineer is available to offer overseas after sale service. The
extrusion machine had has continue improved in past 12 years with high quality and stable
operation.
Ram extrusion machine for Teflon PTFE Tube
The China vertical PTFE RAM Extruder is designed with 2 pressure plates, so the ream is affected
via a slid pressure plate. The China tube ram extruder is equipped with two hydraulic cylinders.
The main cylinder serves to move the ram; the additional cylinder serves for retracting the
mandrel. Base plate and dosing tray are water-cooled.The PTFE Molded powder is feed into the
rotating hopper via an exact working powder dosing device, controlled by a level indicator. By
means of a rotating blade the powder is wiped uniformly into the cavity of the mould.
Range of diameter PTFE Extrusion 20 to 150 mm, Heating zones 5 zones
The complete electrical control is laterally fastened at tube ram extrusion. With a PC touch screen
panel all speeds and temperatures can be programmed. Electronics contain the necessary
automaticcontrollers for speeds and temperatures. 4-6 temperature regulators are contained
in the plant,four for the extruding ptfe and one automatic controller for a mandrel heating
element. The maximum output speed of PTFE extrusion depends on: PTFE Material, outside
PTFE tube diameters and PTFE product heating length.
PTFE Equipment Warranty: according to our standard terms: 12months
Technical Specification:
PTFE Tube Extruder Dia 20mm-150mm
Technical Data
Description Model No.  Machine model PFG-150
Plastic Extruder PTFE Tube
Power 15 kw
Min - Max OD 25mm-150 mm
Tolerance THK 0.1-0.2 mm
Length Unlimited
Production Per Hour 7 kg
Electricity Consumption Per hour 1.2 kw
Weight of the Machine 1320 kg
High of the Machine 2580 mm
Floor area of the Machine 3.5 M2
Warrenty for Parts 1 Year
Machine Gurantee Period 1 Year
Free Spares 1 set
Deliver LT 30 Days
Company information
JIANGSU SUNKOO MACHINE TECH CO.,LTD is specialized in the Extrusion of PTFE
(polytetrafluoroethylene) based machine over 12 year. We manufacture PTFE Rod Ram
Extruder, Tube Ram Extruder, PTFE Moulding press machine and Paste Extruder, Film
Skiving machine, and Sintering furnace. Our organization is professionally managed by
experts with rich experience and comprehensive knowledge of the industry. Our core
values are intrinsic to the way we work to strive towards leadership, trust and customer
loyalty. PTFE machine include PTFE rod extruder, PTFE tube extruder, PTFE tube vertical
extrusion machine, PTFE horizontal rod ram extruder, PTFE Sintering Furnace, Skiving film
machine and billet making machine underground with Isotatic water press pump by
membrane technology.
Our PTFE machine has been exported to USA, Russia, Korea, Saudi Arabia, India, UAE etc.
Here would be a chance and opportunity to cooperate for mutual business with our
technology support. Welcome to visit our factory for business promotion.
www.sukoptfe.com/www.ptfe-machinery.com
HOT TAGS:TEFLON PTFE ROD;TEFLON PTFE TUBE,TEFLON PTFE EXTRUSION
