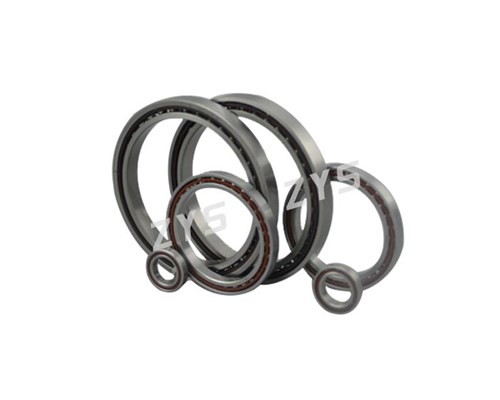

70series angular contact ball bearing72series angular contact ball bearing 718series angular contact ball bearingZYS precision angular contact ball bearings performanceZYS single row angular contact ball bearings can bear radial load and one direction axial load. And radial loads produce axial forces in these bearings. Therefore,Website:http://www.zys-bearings.com, the single-row angular contact ball bearings are often used with other bearings which can withstand axial load in the opposite direction. That is, angular contact ball bearings are commonly used in pair, or in sets with three, four and even five bearings. Angular contact ball bearings have higher limited speed,1. Contact anglesZYS precision angular contact ball bearings with15° (C)and 25°(AC)contact angular. As for the angular contact ball bearings,the bigger of the contact angle is,the greater the axial load capacity is,The bearing with 15° contact angle is used when the high speed and light axial load are needed, and the 25° contact angle bearing should be adopted on the contrary. The paired use can bear both axial load and radial load or synthetic 2. Four dimension seriesThe precision angular contact ball bearings for spindles have four dimension series, 718, 719, 70 and 72. With the same inner diameter, the outer diameter and the width of 718, 719, 70 and 72 increase in turnTable 1. The types and performance of ZYS angular contact ball bearings ZYS angular contact ball bearing seriesStructuresDimension seriesBore size rangePerformanceHigh precision angularcontact ball bearing718 C718 AC 719 C719 AC 70 C70 AC 72 C 72 AC718:10~360mm 719:8~460mm 70: 8~380mm 72: 8~220mmHigh speed;Large loading capacity;Suit for grease or oil-mist lubricationHigh speed angular contact ball bearing(incl. Hybrid ball
