ID4mmOD22mmThrough hole slip ring

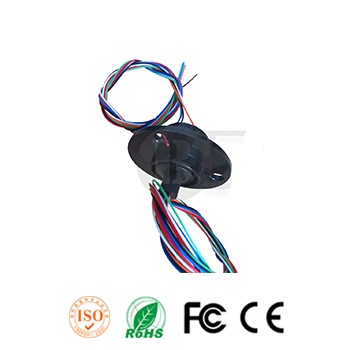

ID4mmOD22mmThrough hole slip ring picture Through hole slip ring ---BTH0422A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A standard through hole slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Its inner part rotates with a rotating shaft pass through the inner hole, so we call it " through hole slip ring"   It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints-------Need flange or not depends on your installation way!Parameters of through hole slip ring:Mechanical : Working speed500rpmOperating temperature-40℃~ +100℃Contact materialPrecious metalIP GradeIP 54Electrical:Circuit6 & 8 & 12Current2AVoltage≤380VDielectric strength≥1000V@50Hz between each circuitInsulation resistance1000MΩ@ 500VDCElectric noise≤7mΩLead wire size26AWG, UL, color Teflon, silver or tin platedLead wire length200mmDimension: TYPERingsLengthIDODBHT0422-6624.8mmΦ4mmΦ22mmBTH042-8828.8mmΦ4mmΦ22mmBTH0422-121236.8mmΦ4mmΦ22mmFeatures of Through hole slip rings :
 • Low noise
 • Wear-resisting (Silver to silver contacting)
 • Good impact resistance
 • Signal and current compatible
 • Workable in hostile environment(-40℃~ +100℃)
 • Flexible design for special requirements  Alternatives of  Through hole slip rings:
 • Circuits
 • Loading of each circuit
 • Wire length
 • Inner hole /outer hole diameter or length
 • Working speed
 • Gold contacting
 • Housing color  Typical Applications of through hole slip rings:  Aerospace / Defense
 • Armored vehicle turrets, IR and EO systems
 • Missile seeker gimbals and inertial systems • Helicopter de-ice systems, EO / IR trackers  and target systems •
