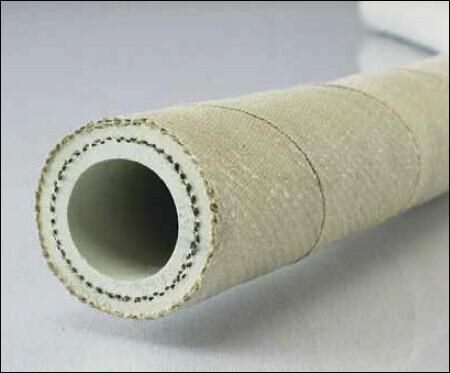

C4380 Non Conductive Furnace Door Coolant Rubber Hose
CONSTRUCTION: Tube is EPDM, white, smooth and non-conductive. Cover is a glass fiber ply impregnated with heat and flame-resistant synthetic rubber. Reinforcement is a two-ply synthetic fabric.TEMPERATURE: -40°F (-40°C) to +266°F (+130°C) Cover to +575°F (+302°C)BRANDING: NoneAPPLICATION: Conveys cooling water to furnace doors in steel mills, glass plants and similar operations.FEATURES: Superior heat resistant cover resists heat up to +575°F. Resists heat, open flame and splashes of white hot metal to +575°F (+302°C). EPDM tube is non-conductive.Part NumberI.D.O.D.Rein. PliesMax W.P. @68°FVacuum
@68°FWeight MBR*Std.Lgth. (ft)in. mm.in.mm. PSIBARlb./ft. KG/min.mmC4380-0050-1001/212.700.9123.11215010.35n/a0.200.305.00127.00100C4380-0075-1003/419.051.1930.23215010.35n/a0.300.457.50190.00100C4380-0100-100125.401.3835.05215010.35n/a0.500.7410.00254.00100C4380-0125-1001-1/431.751.7544.45215010.35n/a0.901.3412.60320.00100C4380-0150-1001-1/238.102.0050.80215010.35n/a1.001.4915.00380.00100C4380-0200-100250.802.5364.26215010.35n/a1.101.6420.00508.00100
