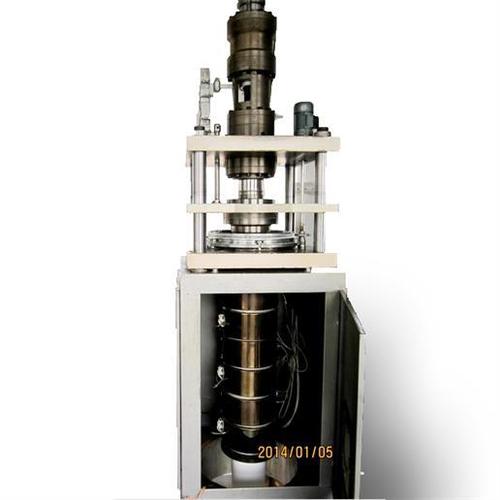

PTFE Products Extruded PTFE Rod Extrusion Machine PFB150

Plastic Ram Extruder  Machine For PTFE Rod(Φ80-150mm)
This PTFE extruder is able to extrude rod which dia from 80mm to 150mm. The automatic
production line is controlled by computer, which is really easy to operate. Meanwhile, the
plastic extrusion machine is advance designed, high output, low energy consumption,
long-life, and also our professional engineer is available to offer overseas after sale service.
We can solve various problems to improve the equipment efficiency for you.
Ram extrusion machine for Teflon rod
The China vertical RAM Extruder is designed with 2 pressure plates, so the ream is affected
via a slid pressure plate. The China rod ram extruder is equipped with two hydraulic cylinders.
The main cylinder serves to move the ram; the additional cylinder serves for retracting the
mandrel. Base plate and dosing tray are water-cooled.
The PTFE powder is feed into the rotating hopper via an exact working powder dosing device,
controlled by a level indicator. By means of a rotating blade the powder is wiped uniformly
into the cavity of the mould.
Range of diameter PTFE Extrusion 80 to 150 mm, Heating zones 5 zones
The complete electrical control is laterally fastened at rod ram extrusion. With a PC touch screen
panel all speeds and temperatures can be programmed. Electronics contain the necessary
automatic controllers for speeds and temperatures. Five temperature regulators are contained
in the plant, four for the extruding pipe and one automatic controller for a mandrel heating
element. The maximum output speed of PTFE extrusion depends on: PTFE Material, outside
PTFE rod diameters and PTFE product heating length.PTFE Equipment Warranty: according
to our standard terms: 12months
Technical Specification:
PTFE Rod Extruder Dia 80mm-150mm
Technical Data
Description Model No.  Machine model PFB-150
Plastic Extruder PTFE Rod
Power 33 kw
Min - Max Dia 80-150 mm
Tolerance 1-2mm+
Length Unlimited
Production Per Hour 8-16kg
Electricity Consumption Per hour 2.5 kw
Weight of the Machine 1220 kg
High of the Machine 1680mm
Floor area of the Machine 1.6 M2
Warrenty for Parts 1 Year
Machine Gurantee Period 1 Year
Free Spares 1 set
Deliver LT 30 Days
Company information
JIANGSU SUNKOO Machine TECH Factory is specialized in the Extrusion of PTFE (polytetrafluoroethylene)
based machine over 12 year. We manufacture PTFE Rod Ram Extruder, Tube Ram Extruder,
PTFE Moulding press machine and Paste Extruder, Film Skiving machine, and Sintering furnace.
Our organization is professionally managed by experts with rich experience and comprehensive
 knowledge of the industry. Our core values are intrinsic to the way we work to strive towards leadership, trust and customer loyalty. PTFE machine include PTFE rod extruder, PTFE tube
extruder, PTFE tube vertical extrusion machine, PTFE horizontal rod ram extruder, PTFE Sintering
Furnace, Skiving film machine and billet making machine underground with Isotatic water press
pump by membrane technology.
Our PTFE machine has been exported to USA, Russia, Korea, Saudi Arabia, India, UAE etc.
Here would be a chance and opportunity to cooperate for mutual business with our technology
support. Welcome to visit our factory for business promotion.
Production Description
Model PTFE series is a single screw extruder for extruding Dia lower 150mm rod and Dia
lower 500mm tube. The automatic production line is controlled by computer, which is really
 easy to operate. Meanwhile, the plastic extrusion machine is advance designed, high output,
 low energy consumption, long-life, and also our professional engineer is available to offer
overseas after sale service. We can solve various problems to improve the equipment
efficiency for you.
