Mechanical Seal for Grundfos CR Water Pumps

Basic Features
Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: Temperature Mechanical Seal
Performance: Corrosion
Standard: Standard
Model NO.: Grundfos Water Pump Seal
Balance: Unbalanced
Specification: Inner Diameter: 16 mm to 150 mm
Product Detailed Description

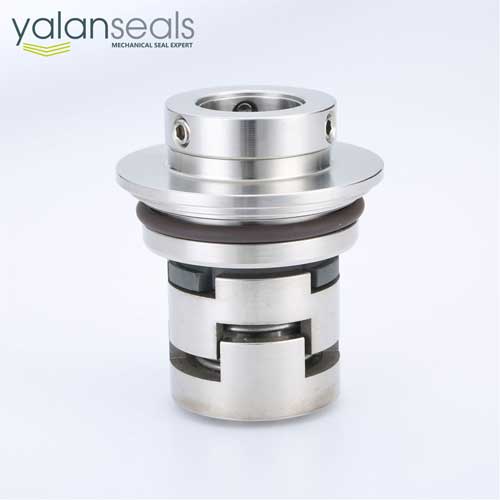

Mechanical Seal for Grundfos Water Pumps

Structural Features: single end, unbalanced, independent direction of rotation, shaft seal.

Industrial Standards: DIN24960, ISO3069, GB6556-94

Scopes of Application: specifically designed for Grundfos water pumps. This product can be an alternative to the original seal product of Grundfos.

Operation Parameters:
Pressure: 1.2 MPa or less
Temperature: - 20 ~ 150 ºC
Linear Speed: 20 m/s or less
Mediums: water.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
