In Stock BXZ-2L Vertical Backpack Drilling Rig For Sale

1.Brief introduction of BXZ-2L backpack drilling rig

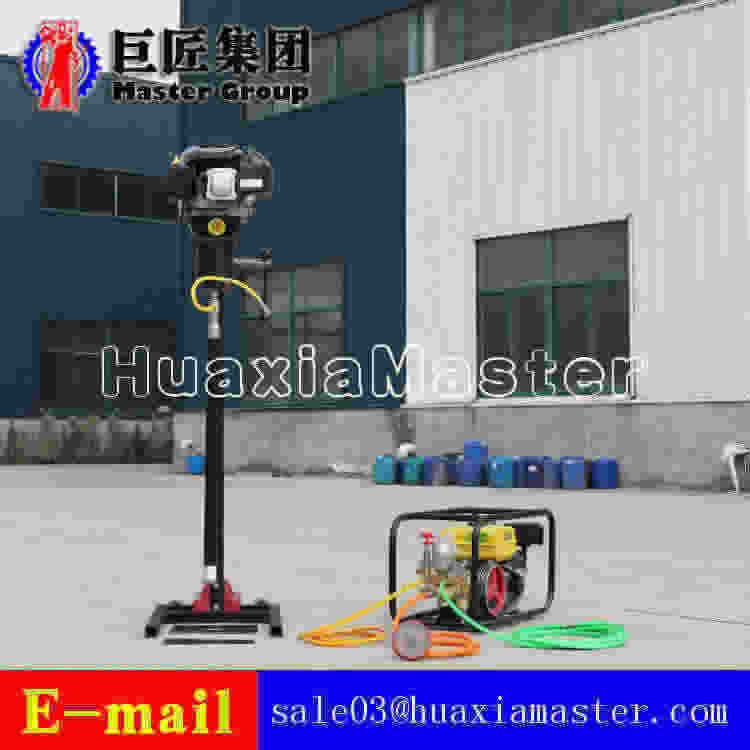

BXZ-2L vertical knapsack core drilling rig is a removable core sample drilling rig. The rig is mainly used in mineral exploration, geochemical exploration, shallow sampling, geoscience research, geotechnical engineering, engineering investigation, oil field exploration, water conservancy engineering survey, highway engineering survey and so on.
The main features of BXZ-2L vertical backpack core drilling machine are compact structure, detachable, small volume, light weight, easy to carry; imported kohler brand gasoline engine with large horsepower and guaranteed drilling depth with drilling frame. Field operation is more convenient and safe.
2.Specifications of BXZ-2L drilling rig
BXZ-2L drilling rig
Engine brand Kohler
House power 7.75 HP
Fuel tank capacity 1400 ML
Transmission mode gear-driven
Starting mode recoil pull starter
Clutch mode automatic clutch
Coring mode rotary
Rate of penetration 540r /min
Gear ratio 7:1
Transmission mode CVT (continuously variable transmission)
Drill pipe diameter 32mm
Drill pipe total length 30m
Drill hole diameter 32-120mm
Net weight 52 kg
Size 550*450*420mm
Packing measurement 1050*600*550mm
3.Configuration List of BXZ-2L backpack drilling rig
Item Parameter Unit Number
Drill rig including stand BXZ-2L Set 1
Drilling pipe including joint 32 *800 mm pc 38
Reducing nipple 46 mm pc 1
Coring barrel 46 *700 mm pc 1
Alloy bit 46 pc 1
Diamond bit 46 pc 1
Reducing nipple 60 pc 1
Coring barrel 60*700 mm pc 1
Alloy bit 60 pc 1
Diamond bit 60 pc 1
Mud pump (gasoline engine) set 1
Inlet hose pipe 20*1000 mm pc 1
Inflow water filter pc 1
Outlet hose pipe 13*1000 mm pc 1
Water supply pipe 13*4500 mm pc 1
Safety clamp grasp 1
Pipe wrench grasp 2
Safety plate pc 1
Spark plug pc 1
Ring gasket Set 1
Water seal Set 1
