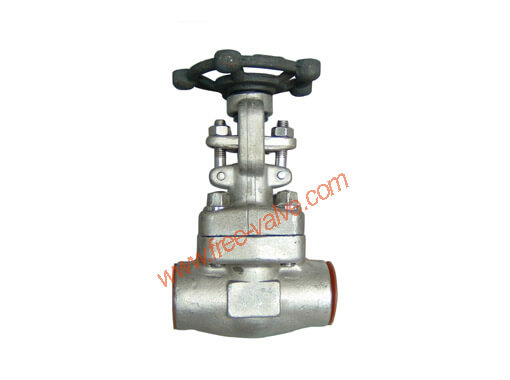

SW Ends Forged Steel Globe Valve

FREE-Valve’s sw ends forged globe valve is compact, sturdy and ideal for high pressure and high temperature applications and consist of a disc and stem connection designed for regulated flow or on/off. Stem seal consists of flexible graphite packing with anti extrusion rings for optimum stem sealing. These valves are outside screw and yoke type (OS & Y) with rising stem and rising handwheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.
Features
1.Efficient packing seal at backseat to ensure no leakage from stem.
2.Outside Screw & Yoke construction facilitate stuffing box maintenance.
3.Metallic ring gasket or spiral wound gasket can be applied to ensure the tight seal of body/bonnet joint.
4.Fully guided disc ensures accurate alignment of disc and seat and reduces wear on seating surfaces.

Technical Specification:
Socket weld end/Screwed end ANSI B16.11/ANSI B1.20.1
Design standard API 602, ASME B16.34
Pressure Range 150LB to 2500LB
Size Range 1/4" to 3"
Material Forged Carbon, Stainless or Alloy Steel Materials
Connection type Socket weld end/Screwed en
Working Temperature ≤500°C
Operating Type Handwheel
Sealing surface material Alloy
Pressure test GB/T13927, API598
Face to Face ASME B16.10

Application
FREE-Valve’s sw ends forged globe valves offer high performance, reliability and safety. The Globe Valve are especially suitable for high pressure and high temperature application in steam, oil and gas processing, power industries, in chemical and petrochemical industries.

Model:FRJ61Y
Price:100-2000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
