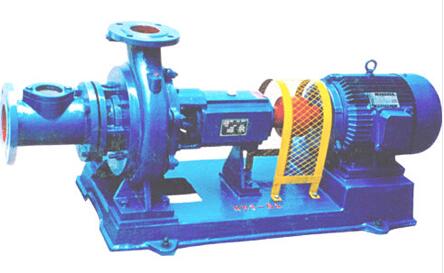

XWJ non-clog pulp pump drainage pump paper pulp pump not clo

1. XWJ energy saving non-clog pulp sewage centrifugal pump is with high efficiency, without leakage, good anti-clogging ability, stable operating performance.

2. Mainly made up of the body, impeller, cover, board & hanging part.

3. The gap between wear plate and impeller is adjustable, and the shaft seal is mechanical seal and made of high quality material.

4. Apply to the transfer liquid of temperature ≤110°C(230°F) & concentration ≤ 6% in light industry or papermaking. Also It can be used in industry & city water supply & drainage.

Application:

1. Paper industry

Used for transporting pulp with the concentration below 6.

The cycle of transmission media, promotions and pressure that is used in alkali recovery process.

2. Sugar industries

Delivering syrup for concentration below 4%, viscosity below 150mm2 / s

3. Urban sewage industries

It is widely used in sewage treatment process for the cycle of transmission media, upgrading

and pressure.

Capacity: 20-400m3/h(88-1760US.GPM)

Head: 32m(105.0ft)
