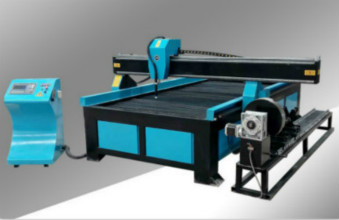

4x8ft CNC Plasma Cutting Table with Affordable Price For Sale

[url]https://www.cnclaserengraver.com/product/4x8ft-cnc-plasma-cutting-table-with-affordable-price-for-sale/

Main Features:
1). Strong machine structure welded by square tubes and plates to ensure high running accuracy and long service time;
2). Working size can be made to order upon working requirement, such as 1500x3000mm, 1500x4000mm, 2000x4000mm, 2000x6000mm, etc.
3).START control system with auto adjust height system ,can smooth cutting in the case of high and low material
4). Professional programming software, such as FastCAM/Starcam/other, easy to learn and can convert drawings into G code automatically for the machine.
5). Rotary device is equipped specially for steel pipes;
6). Suitable for:aluminum, galvanized sheet, stainless steel,iron plate, titanium sheet, etc.
7). USA Hypertehrm and China brand plasma sources are available for different customers;

Technical Parameters:
Brand Jeesun
Model JS-PC-1530
Working Area(X*Y) 1500x3000mm(upon working requirement)
Z working area 150mm
Max. Allowed diameter  200mm(made-to-order)
Machine Structure Table type machine structure
Guide rail Taiwan HIWIN Linear guide
Transmission X/Y rack and pinion,Z Taiwan TBI Ball Screw
Drive Mode Stepper Motor (Optional Servo )
Control System Start/ SJTU-CNC/Hypertherm etc
Cutting thickness Upon actual plasma source
Cutting Speed 0-8000mm/min
Working Voltage 3-Phase 380V/2-phrase, 220V
Cutting accuracy ±0.02mm
