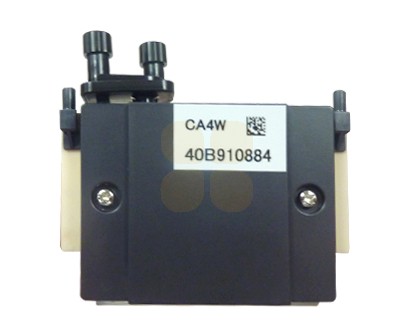

Mimaki JF-1631 Print Head

Specifications
- Technology: On Demand Piezo Electric
- Max. Resolution: 1200 dpi
- Droplet Size: 6 to 90 pico litre
- Maximum Grayscale Levels: 16
- Tot. Amount of Nozzles: 318
- Nozzle Spacing: 169 microns
- Firing Frequency: 28 kHz (1 drop) - 2.8 kHz (15 drops)
- Driving Voltage: 14 - 31 V
- Ink Compatibility: Oil Based Pigment Ink and UV Ink

Printer compatibility:

Mimaki JF-1631 / JF-1610



This Mimaki JF-1631 / CA4 Print Head on-demand piezo electric inkjet print head is designed for industrial applications with high print quality. Unlike conventional binary print heads, this grayscale print head technology is capable of jetting multiple drops within one dot allowing for an image to have 16 levels of grey, since each dot is created through a minimum of 6 pico litre to a maximum of 90 pico litre of ink.
The Mimaki JF-1631 / CA4 Print Head is suitable for UV curable and Oil based inks, it has 2 ink inlet ports (which can be easily removed to be replaced with a 1 ink inlet assembly) and a chassis which provides a built-in water channel and complete sealing designed for easy temperature control. This is Mimaki original CA4 printhead without the bracket (corresponds to Mimaki part number M007278). It carries a one year product warranty.

An installation video is available in the video tab of this product and full installation instructions are included with the printhead. The JIG tools used to calibrate and fit this head are available as related products.
