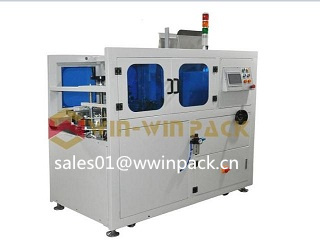

Packing Machine 30 ctn min carton erector QL-840H30S

The win-win pack high speed carton erector QL-840H30S is design for E-commerce industry.This machine is suitable for sealing small cartons and can seal up to 30 boxes per minute.

Specification:
1.High-speed carton erector adopts mechanical transmission, driven by the rotary motion or reciprocating motion of the CAM, the follower is a mechanism that stipulates reciprocating movement or oscillation (such as taking out the carton, forming the carton and folding the bottom of carton).
2.Compared with the traditional pneumatic carton erector, high-speed carton erector is controlled by CAM, it is more stable and faster, the machine is small, simple operation, and easy to adjust.
3.There is no need to stop the machine for feed the cartons. The machine adopts infinitely variable speed, and the operator can operate the machine without stopping the machine. Machine interface input the value of number for change the machine speed.
4.Machine doesn’t need belts to clamp the carton for conveying, which can prevent carton dislocation caused by out-of-sync belt conveying.
5.Automatic warning and reminder to feed cartons.
6.Alarm for the machine is not taken out successfully.
7.Alarm for erect the carton fails.
8.Tape failure alarm.
9.Alarm for the tape used up.
Safety precautions: the machine has a safety door, and the machine stops running when the door is opened
When the above 6,7,8,9 alarms are raised, the machine stops running at the same time. All alarms are displayed on the man-machine interface for solve the troubleshooting quickly.

Technical Parameters：
Model:QL-840H30S
Forming and sealing speed:15-30ctns/min
Carton storage quantity:About 80PCS ( 800mm )
Adhesive tape width:50mm
Power supply:AC 220V 20A 1KW
Air compressing :0.5-0.7MPa
Air comsumption:300L/min
Table height:950mm
Machine size:L1750 * W910 * H1850mm
Machine weight:800kg
Carton size(mm) :L130-290*W80-160*H90-190mm
