PTFE Machine Extruded Plastic Tube PFG300

Extruded Plastic Teflon PTFE Tube Extrusion line (Φ150-300mm)
PTFE ram extruder line is able to extrude ptfe/Teflon tube which dia from 150mm to 300mm.
The automatic production line is computerize controll, which is really easy to operate. Meanwhile,
the plastic Teflon extrusion machine is advance designed, high output, low energy consumption,
long-life, and also our professional engineer is available to offer overseas after sale service.
The extrusion machine had has continue improved in past 10 years with high quality and stable
operation.

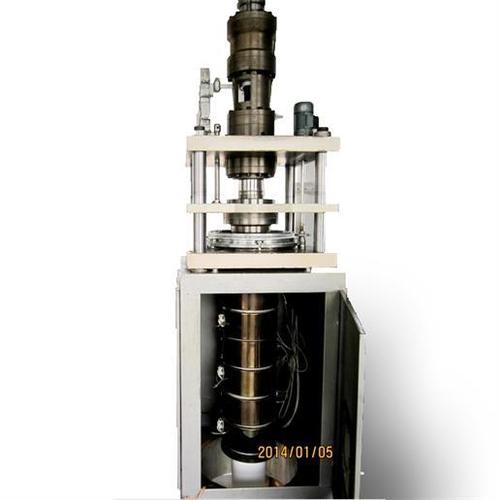

PTFE machine Ram extrusion machine for Teflon PTFE Tube

The China vertical PTFE RAM Extruder is designed with 2 pressure plates, so the ream is affected
via a slid pressure plate. The China tube ram extruder is equipped with two hydraulic cylinders.
The main cylinder serves to move the ram; the additional cylinder serves for retracting the
mandrel. Base plate and dosing tray are water-cooled.
The PTFE Molded powder is feed into the rotating hopper via an exact working powder dosing
device, controlled by a level indicator. By means of a rotating blade the powder is wiped uniformly
into the cavity of the mould.
Range of diameter PTFE Extrusion 150 to 300 mm, Heating zones 5 zones
The complete electrical control is laterally fastened at tube ram extrusion. With a PC touch screen
panel all speeds and temperatures can be programmed. Electronics contain the necessary
automatic controllers for speeds and temperatures. 4-6 temperature regulators are contained
in the plant, four for the extruding ptfe and one automatic controller for a mandrel heating
element. The maximum output speed of PTFE extrusion depends on: PTFE Material, outside
PTFE tube diameters and PTFE product heating length.
PTFE Equipment Warranty: according to our standard terms: 12months
Technical Specification:
PTFE Tube Extruder Dia 150mm-300mm


Technical Data of PTFE machine

Description Model No.  Machine model PFG-300
Plastic Extruder PTFE Tube
Power 25 kw
Min - Max Dia 150-300 mm
Tolerance 0.1-0.2mm
Length Unlimited
Production Per Hour 7-14kg
Electricity Consumption Per hour 1.5 kw
Weight of the Machine 1980 kg
High of the Machine 2960 mm
Floor area of the Machine 4.6 M2
Warrenty for Parts 1 Year
Machine Gurantee Period 1 Year
Free Spares 1 set
Deliver LT 30 Days

Company information
JIANGSU SUNKOO MACHINE TECH CO.,LTD is specialized in the Extrusion of PTFE
(polytetrafluoroethylene) based machine over 12 year. We manufacture PTFE Rod Ram Extruder,
Tube Ram Extruder, PTFE Moulding press machine and Paste Extruder, Film Skiving machine,
and Sintering furnace. Our organization is professionally managed by experts with rich experience
and comprehensive knowledge of the industry. Our core values are intrinsic to the way we work
to strive towards leadership, trust and customer loyalty.PTFE machine include PTFE rod extruder,
PTFE tube extruder, PTFE tube vertical extrusionmachine, PTFE horizontal rod ram extruder,
PTFE Sintering Furnace, Skiving film machine and billet making machine underground with
Isotatic water press pump by membrane technology.
Our PTFE machine has been exported to USA, Russia, Korea, Saudi Arabia, India, UAE etc.
Here would be a chance and opportunity to cooperate for mutual business with our
technology support.
Welcome to visit our factory for business promotion.
