HC80-315 Mechanical Seals for Power Plants, Alumina Plants,

Basic Features
Structure: Double-End
Pressure: Medium Pressure Mechanical Seals
Speed: High Speed Mechanical Seal
Temperature: Temperature Mechanical Seal
Performance: Wear
Standard: Standard
Model NO.: HC80-315
Balance: Balanced
Specification: Inner Diameter: 25 mm
Product Detailed Description

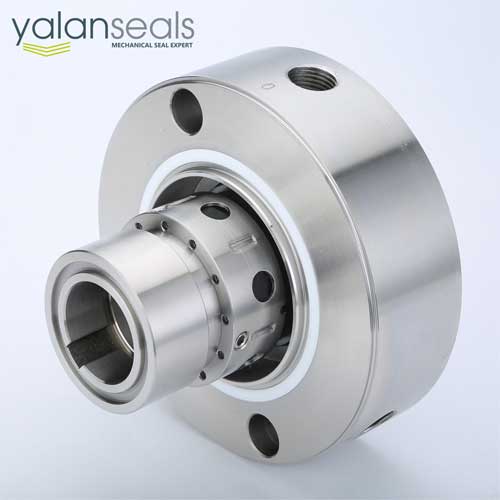

HC80-315 Mechanical Seals for Power Plants, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps

Structural Features: double end, balanced, independent direction of rotation, with cooling liquid inlet and outlet, cartridge mechanical seal. This component is the cartridge type of 58B mechanical seal.

Industrial Standards: Not available right now.

Scopes of Application: mainly used in thermal power plants, paper-making equipment, alumina plants, flue gas desulphurization (AKA FGD), deashing system (for power plants), chemical water pumps and slurry pumps.

Operation Parameters:
Pressure: no more than 1.2 MPa
Temperature: no more than 120 ºC
Linear Speed: no more than 3000r/min
Mediums: paper pulp, coal cinder, slag, ash and other fluids with solid powder.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
