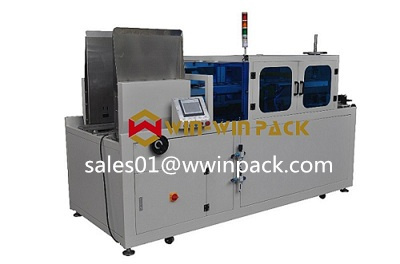

Packing Machine 50 ctn min carton erector QL-840H50

The Win-win pack high speed carton erector QL-840H50 is tailored to those customers looking for an high speed, small footprint and simple machine capable of running up to 50 cartons per minute with vertical carton handling.
High speed carton erector QL-840H50 is transferred from the magazine with vacuum cups; carton opening and all flap folding is done with mechanical cam devices. The all-mechanical system is extremely simple and easy to observe and troubleshoot using the slow motion / jog operation, The operator or mechanic can observe the complete case forming cycle at this slow, full function speed., and PLC + screen control is greatly facilitate the operation. Combine the Carton erector QL-840H50 with bag inserter, case sealer, cartoning machine, label machine, case packer to profit from a fully automatic packing line.

Technical Parameters：
Model:QL-840H50
Forming and sealing speed:35-50ctns/min
Carton storage quantity:About 80PCS ( 800mm )
Adhesive tape width:48/60mm ( Choose one size )
Power supply:3P 380V 750W
Air compressing :6kg/cm³
Air comsumption:450NL/min
Table height:950mm
Machine size:L3500 * W1210 * H1750mm
Machine weight:1200kg
Carton size(mm) :L260-450*W170-350*H110-350mm
（The max.size and min.size can’t be existed together）
