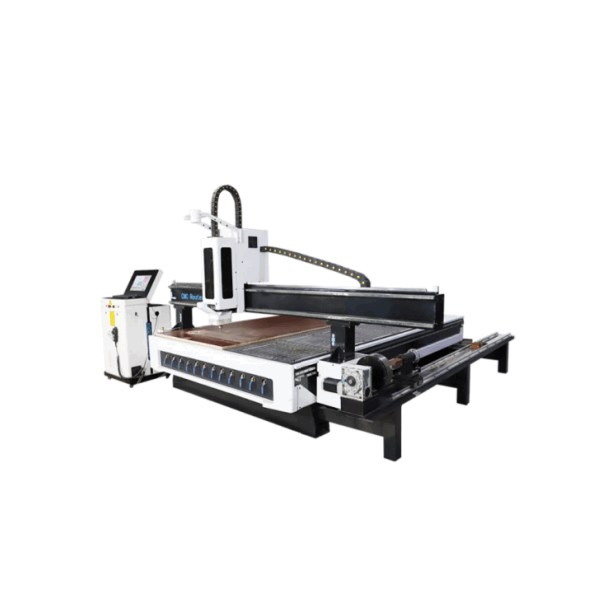

2130 4 Axis ATC CNC Router with Rotary Axis‑Large Format 180

This 2130 4‑axis ATC CNC router comes with rotary axis and 180‑degree swing spindle. Optional 8‑station linear tool changer realizes automatic tool switching for diverse processing technologies. It supports full‑range dead‑angle‑free engraving and complex curved‑surface machining, combining flat‑plate carving and cylindrical workpiece processing in one machine.
Working area:21003000200mm. Built on thick‑square‑tube heavy welded bed for high rigidity and anti‑deformation. It is equipped with HQD 9KW air‑cooled spindle, Fuling inverter, Dorna AC servo motor & driver, Taiwan LNC 4‑axis control system with hand‑wheel. Vacuum & T‑slot combined worktable with air‑cooling pump. X/Y axis adopts helical rack‑and‑pinion; Z‑axis uses TBI 3210 ball screw, together with Taiwan HIWIN 25mm square guide rails. Repositioning accuracy ±0.02mm. Configurations include Omron limit switches, automatic lubrication system, oil‑mist system and independent electric cabinet. It follows international G‑code standard, easy‑to‑operate and cost‑effective.
Main application industries:
✅ Advertising industry: labels, nameplates, marble, brass and steel material engraving & cutting for artistic effects
✅ Crafts industry: pattern & multilingual character engraving for gifts & souvenirs, art‑craft shaping and stiletto work
✅ Mold industry: fine pattern & letter carving, small‑size mold rough and finish machining
✅ Architectural model field: fine window, fence and wall‑pattern carving
✅ Seal making: buffalo horn, wood and other material seals & medal engraving
If you want to get a similar CNC Wood Router or need more information about the CNC machine, please email us to contact@spiritore.com.
For a quick response, online chat is available via Whatsapp: +86‑18954149903. Browse our official website for more machine selections: https://www.spiritore.com
Check full specifications and details of this 2130 4‑axis ATC CNC router with rotary axis here：https://spiritore.com/product/2130-4-axis-atc-cnc-router-with-rotary-axis
