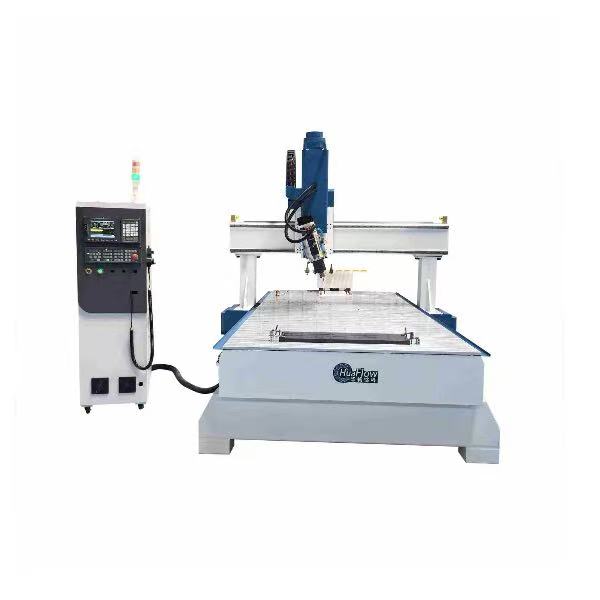

4 Axis ATC CNC Router‑4‑Axis Linkage Machine for Complex Cyl

This 4‑axis ATC CNC router adds rotary axis based on traditional X/Y/Z three linear axes, realizing 4‑axis simultaneous‑linkage machining. It supports multi‑side processing for cylinders, prisms and polyhedrons without manual re‑clamping. C‑axis rotation range reaches ±90°, with automatic tool changer and automatic tool calibration function. It supports offline operation, breakpoint resume machining, parameter backup & recovery, and passes multiple CE anti‑interference tests.
Multiple working sizes are optional:13002500mm,15003000mm,2000*3000mm; Z‑axis travel 300‑600mm optional. Spindle options cover 3‑6kw air‑cooled spindle or 9kw ATC air‑cooled spindle(24000RPM). X/Y axis adopts German helical rack‑pinion, Z‑axis uses TBI ball screw, matched with HIWIN/THK linear guides. Thickened welded steel tube frame, rigid gantry; worktable can choose aluminum T‑plate extrusion table or vacuum adsorption table. Support DSP handheld controller, NCstudio, Mach3, Syntec control system. Equipped with automatic lubrication system, 3kw double‑bag dust collector. Max rapid travel speed 40000mm/min, max working speed 25000mm/min. It is compatible with Type3, Ucancam, Artcam and other mainstream CAD/CAM software, completing 2D,2.5D and complex 3D processing.
Suitable processing materials: wood series, acrylic, ABS, PVC and other plastics; granite, marble, ceramic stone materials; aluminum, brass, copper soft metals; various composite materials.
Wide‑range application industries:
✅ Construction industry: cabinet doors, wooden doors, facades, curtain walls, columns and balustrades
✅ Sign & advertising industry: indoor‑outdoor signage, relief engraving, 3D letters, funeral‑related crafts
✅ Mold industry: casting molds, automobile, ship, yacht, aviation and rail‑transport mold production
✅ Craft processing: relief sculpture, 3D statue, European‑style furniture legs, stone carving artwork
✅ Plastics & composite processing: ACP, ACM, solid‑surface material machining
