1325 Automated Woodworking Engraving Machine‑Linear ATC 3‑Ax

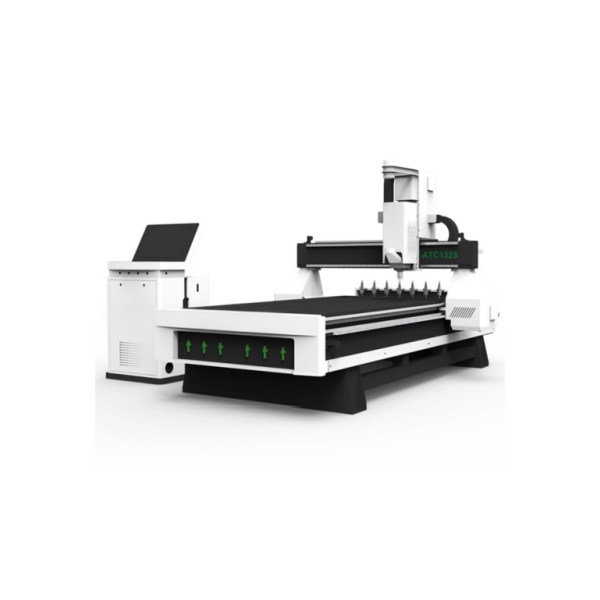

This 1325 linear ATC CNC router supports engraving, milling, chamfering, side‑milling, drilling, cutting and grooving. It adopts lift‑up linear tool magazine, available for 8‑12 tools automatic switching, greatly cutting manual tool‑changing time and raising production efficiency. Disk‑type tool changer is also optional for your selection.
Working area:13002500200mm. Built‑on thick big‑square‑tube welded bed, heavy steel gantry and steel pillars. It is equipped with HQD 9KW air‑cooled ATC spindle, Fuling inverter, Dorna 1500W servo motor & driver with SHIMPO reducer. You can choose Chinese HQD spindle or imported Italy HSD 9.0KW air‑cooled spindle as alternative. It applies Taiwan LNC control system; XY‑axis uses helical rack‑and‑pinion, Z‑axis adopts TBI 3210 ball screw with Taiwan HIWIN square guide rails. Vacuum & T‑slot combined worktable matches 5.5KW cooling pump, the clamping capacity increases by over 30%. Fitted with Omron limit switches, automatic lubrication system, fixed tool sensor, independent electric cabinet and 3.0KW double‑bag dust collector. Multiple circuit protection includes overload protection and fuse safety design. Partial specifications can be customized.
Main application industries:
✅ Woodworking industry: cabinet doors, wooden doors, panel furniture, solid‑wood crafts, wave‑plate processing
✅ Advertising industry: acrylic, PVC, double‑color‑board engraving and cutting, sign making
✅ Mold industry: non‑metal mould carving for wood board, plastic and composite materials
✅ Decoration industry: decorative relief, craft artwork processing
If you want to get a similar CNC Wood Router or need more information about the CNC machine, please email us to contact@spiritore.com.
For a quick response, online chat is available via Whatsapp: +86‑18954149903. Browse our official website for more machine selections: https://www.spiritore.com
Check full specifications and details of this 1325 automated woodworking engraving machine CNC router here：https://spiritore.com/product/1325-automated-woodworking-engraving-machine-cnc-router
