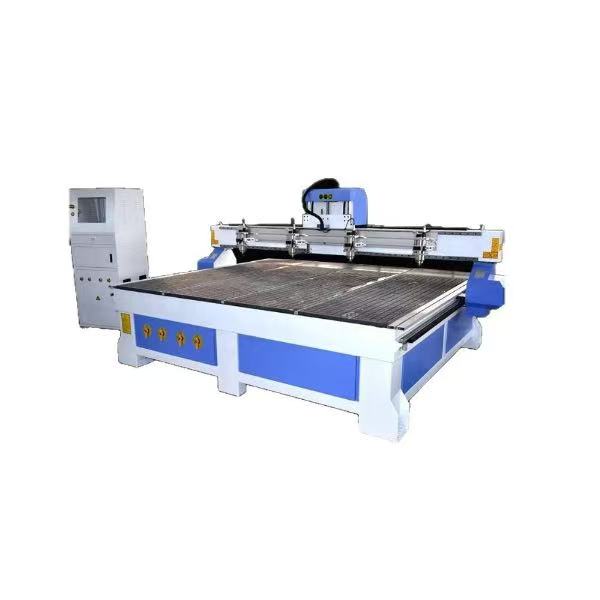

CNC Router Machine with 4 Independent Spindle Heads‑Dual‑Mod

This 4‑independent‑spindle CNC router supports two working modes. Four spindles can run synchronously to carve identical patterns for mass‑volume orders, greatly boosting output and keeping consistent product quality. Besides, single‑spindle independent processing is also available for large‑size plates or small‑batch production tasks, balancing production capacity and cost control.
Standard working size:15003000200mm; multiple optional sizes including 13002500mm, 20003000mm, 2000*4000mm; Z‑axis travel can be adjusted from 200‑600mm. It adopts heavy thick‑welded steel‑tube frame and rigid gantry structure. Equipped with 4 sets of HQD 4.5kw air‑cooled spindles, 4 groups Yako stepper motors and drivers. XY‑axis uses helical rack‑and‑pinion transmission, Z‑axis adopts TBI ball screw, matched with Taiwan HIWIN 20mm square linear guides. T‑slot vacuum table holds workpieces firmly. It supports NC‑Studio, DSP, Mach3, Syntec and other control systems. Fitted with Omron limit switches, automatic lubrication system, automatic tool sensor and 3.0kw double‑bag dust collector. Max rapid travel speed 40000mm/min, max working speed 25000mm/min. Compatible with Type3, Ucancam, Artcam and other mainstream CAM software to finish 2D,2.5D and 3D machining.
Applicable materials: solid wood, MDF, plywood, PVC, acrylic, artificial stone, granite, foam, soft‑metal aluminum, brass and various composite materials.
Main application industries:
✅ Woodworking industry: wave boards, antique furniture, wooden doors, screens, cabinet doors, sofa legs, headboards
✅ Advertising industry: logo signs, acrylic cutting, crystal character making, advertising material processing
✅ Mold industry: copper, aluminum, iron metal molds and non‑metal molds such as artificial marble, PVC, wood boards
