CNC Marble Engraving Machine‑Heavy‑Duty 3‑Axis CNC Router fo

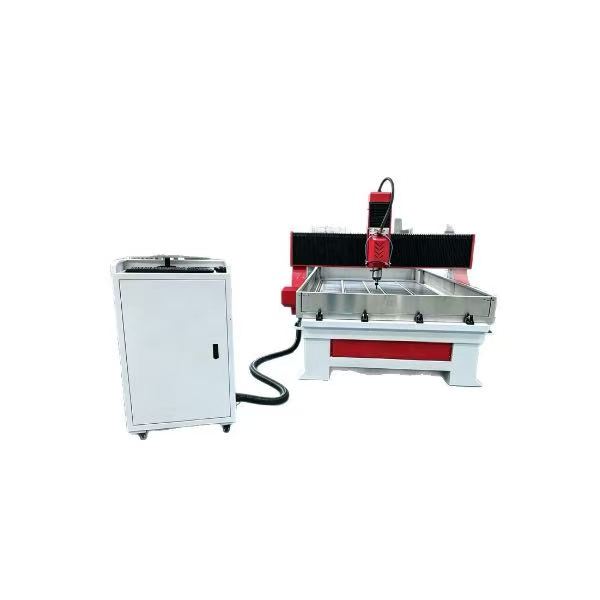

This heavy‑duty CNC marble engraving machine is a professional CNC stone working equipment, specially built for hard stone processing. It is equipped with water tank worktable and 5.5KW high‑power spindle running at 24000RPM. It can do layered deep carving on hard granite up to 5mm per layer, and one‑time 5‑mm deep engraving for marble and bluestone. It supports 2D, 2.5D and 3D machining including lettering, relief, hollowing and cutting, satisfying personalized home‑decoration and industrial art design requirements.
Multiple working sizes are optional:13002500mm,13003000mm,15003000mm,20003000mm,2000*4000mm; Z‑axis travel 300‑600mm optional. Thick‑welded steel‑tube bed plus rigid cast‑steel gantry structure. XY‑axis adopts German helical rack‑and‑pinion, Z‑axis uses TBI ball screw with HIWIN/THK linear guides. Stepper or AC servo motor optional. Compatible with DSP handheld controller, NC‑Studio, Mach3, Syntec and Siemens control systems. Fitted with automatic lubrication system, automatic tool sensor, X&Z‑axis dust‑proof cover for protecting screw and guide rails. Max rapid travel speed 40000mm/min, max working speed 25000mm/min. Compatible with Type3, Ucancam, Artcam CAM software.
Suitable materials: marble, granite, jade, bluestone, black stone, ceramic, glass, plexiglass, PVC, aluminum‑plastic board, bamboo and soft‑metals like aluminum, brass and copper.
Main application industries:
✅ Stone industry: tombstone, monument, marble and granite sculpture production
✅ Decoration industry: screens, wave boards, large wall hangings, advertising boards and logo making
✅ Crafts industry: pattern & text engraving on artificial stone, wood, bamboo, organic board and double‑color board
If you want to get a similar CNC Wood Router or need more information about the CNC machine, please email us to contact@spiritore.com.
For a quick response, online chat is available via Whatsapp: +86‑18954149903. Browse our official website for more machine selections: https://www.spiritore.com
Check full specifications and details of this CNC marble engraving machine here：https://spiritore.com/product/cnc-marble-engraving-machine
