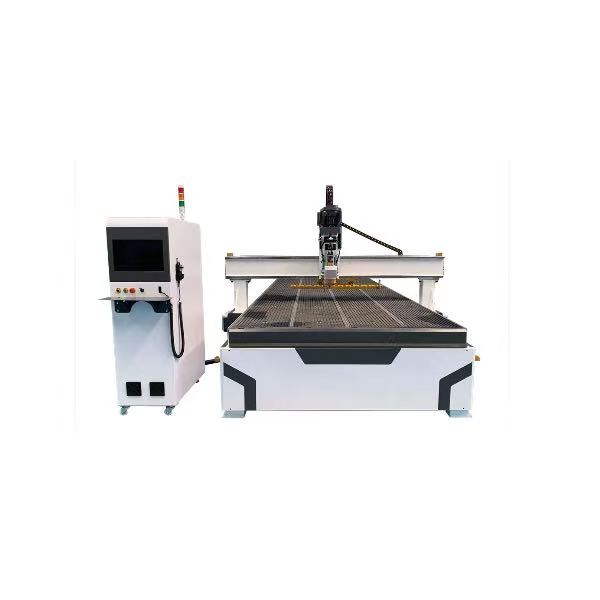

Good Quality Linear ATC CNC Woodworking Router‑Industrial Au

This industrial‑grade linear ATC CNC woodworking router is built for panel processing workshops. It adopts linear tool magazine with 10 tool positions, carousel‑type tool changer is optional. Tools can be switched automatically according to different machining procedures without manual intervention, greatly improving production efficiency and keeping consistent cutting quality. Beginner‑friendly human‑oriented design allows operators to master operation quickly.
Multiple working sizes optional:13002500mm,15003000mm,20003000mm,20004000mm; Z‑axis travel 200‑600mm optional. Equipped with 9.0KW 24000RPM ATC spindle (ISO30, ER32), 1000W AC servo motors. XY‑axis uses helical rack‑and‑pinion, Z‑axis adopts high‑precision TBI ball screw, matched with HIWIN/THK linear guides. Cast‑steel frame with zoned vacuum T‑slot worktable. Control options include NC‑Studio, Syntec, Siemens and DSP handheld controller. It comes with safety laser light bar, automatic pin location device, automatic lubrication system, automatic tool sensor, 3.0kw double‑bag dust collector; auto‑pusher is available as an option. Max rapid travel speed 80000mm/min, max working speed 45000mm/min. Compatible with Type3, Ucancam, Artcam and other mainstream CAM software for 2D,2.5D and 3D machining.
Suitable materials: solid wood, plywood, MDF, acrylic, ABS, PVC, granite, marble, aluminum, brass, copper and various composite materials.
Main application industries:
✅ Woodworking industry: solid‑wood doors, cabinets, wardrobes, beds, wooden crafts, screens and fan windows
✅ Advertising industry: signs, acrylic cutting, advertising decorative products
✅ Mold industry: wood, foam, EPS, copper & aluminum molds and non‑metal molds such as PVC and artificial marble
If you want to get a similar CNC Wood Router or need more information about the CNC machine, please email us to contact@spiritore.com.
For a quick response, online chat is available via Whatsapp: +86‑18954149903. Browse our official website for more machine selections: https://www.spiritore.com
Check full specifications and details of this good quality linear ATC CNC woodworking router machine here：https://spiritore.com/product/good-quality-linear-atc-cnc-woodworking-router-machine
