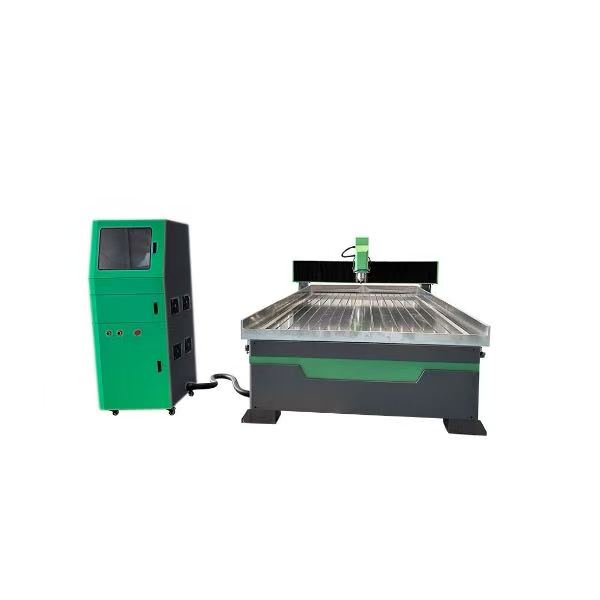

CNC Router Machine with Aluminum T‑Slot Table‑Precision CNC

This high‑precision 3‑axis CNC router is specially optimized for non‑ferrous metal processing. It adopts heavy thick‑welded steel tube frame to reduce vibration and deformation during metal cutting. The corrosion‑resistant aluminum T‑slot extrusion table provides stable clamping condition for metal sheets and profiles, delivering burr‑free cutting edges.
Multiple working sizes are optional:13002500mm,15003000mm,20003000mm,20004000mm; Z‑axis travel 200‑600mm optional. Equipped with 9.0KW HQD ATC spindle, Yako servo motor with Japan Shimpo reducer and Schneider electric components. XY‑axis uses helical rack‑and‑pinion, Z‑axis applies high‑precision TBI ball screw together with HIWIN/THK linear guides. Control system supports Syntec or NC‑Studio; CCD camera and oscillating knife can be added as optional configurations. It is fitted with automatic lubrication system, intelligent mis‑operation protection system and high‑efficiency cooling unit for long‑hour continuous production. Automatic tool sensor and 3.0kw double‑bag dust collector are optional. Max rapid travel speed 80000mm/min, max working speed 45000mm/min. Compatible with Type3, Ucancam, Artcam software for 2D & 2.5D machining.
Suitable materials: aluminum sheets & profiles, copper, brass; it can also process wood, acrylic and composite panels.
Main application industries:
✅ Metal fabrication: metal signage, electrical panels, decorative metal parts, precision non‑ferrous components
✅ Advertising industry: metal logo, nameplate, decorative metal artwork
✅ Custom processing: custom metal engraving, milling and cutting jobs for workshop production
If you want to get a similar CNC Wood Router or need more information about the CNC machine, please email us to contact@spiritore.com.
For a quick response, online chat is available via Whatsapp: +86‑18954149903. Browse our official website for more machine selections: https://www.spiritore.com
Check full specifications and details of this CNC router machine with aluminum table here：https://spiritore.com/product/cnc-router-machine-with-aluminum-table-for-aluminum-copper-brass-metal-cutting
